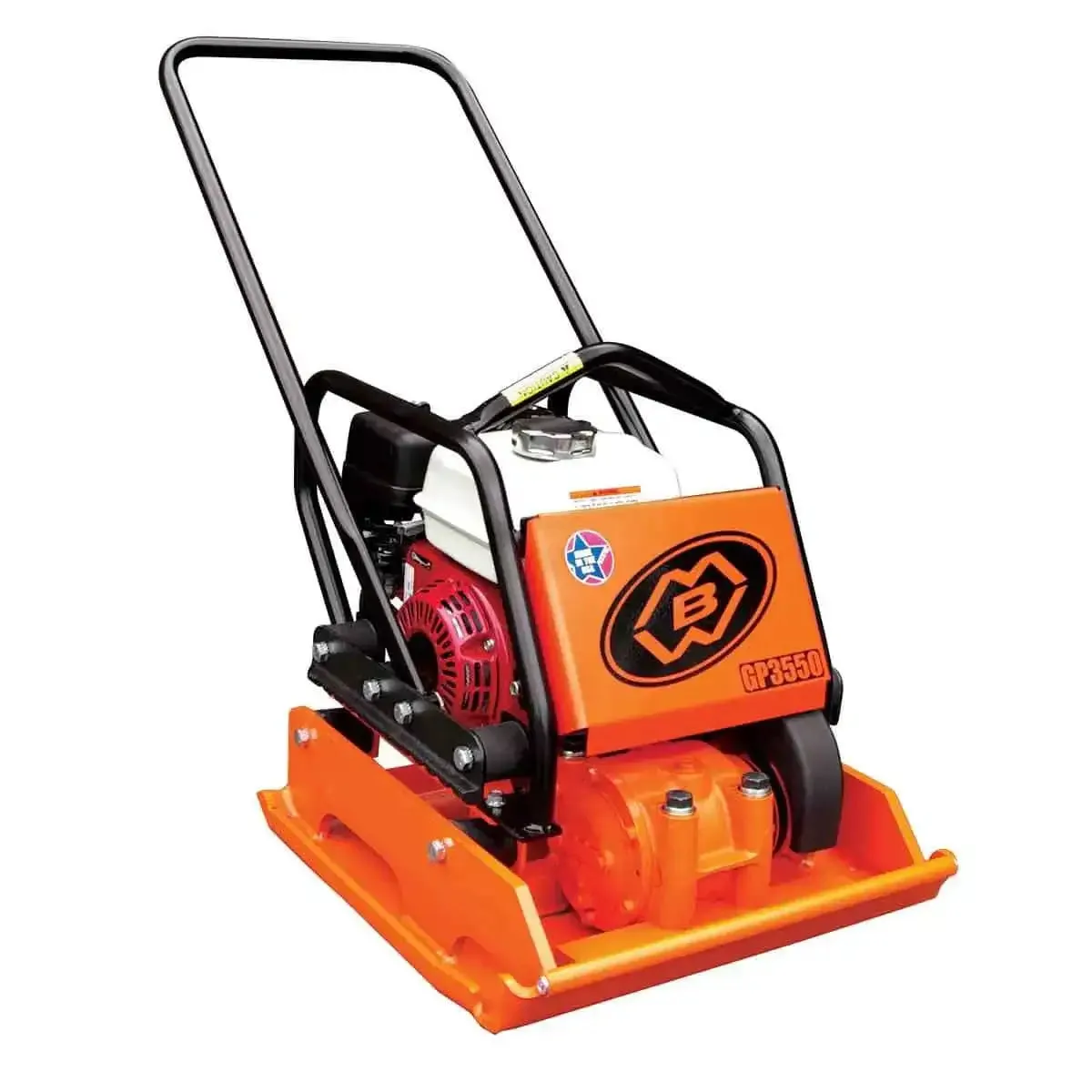

MBW GP3550GH 21" x 22" Plate Compactor
Premium, high-production compactor with a life expectancy that runs for decades with reasonable maintenance.
Features
- Operating weight is over 220 lbs. (103 kg) and produces compaction depths up to 18 in. (47 cm)
- Travel speed of 110 ft/min (34 m/min)
- Full roll cage as standard equipment with provisions for a water tank for asphalt compaction on AP3550
- The base plate is self-cleaning with an open-sided plate design that allows the material to flow out and away from the belt/pulley assembly during the operation
- Reduced hand/arm vibration, full roll cage protection, enhanced amplitude, faster travel speed, and updated yet rugged appearance
- Extra heavy-duty housings, precision ground ductile eccentric shafts, over-sized application matched bearings
- Oil mist lubrication system and custom lubricants to withstand high operating temperatures
- Stress-relieved steel tamping plates are crack-resistant and provide years of useful service
- Quality shock mounts and double-isolated guide handles
- Optional neoprene paving pad accessory for interlocking paving blocks
- Proudly Made in the USA
MBW GP3550H Plate Compactor Specifications | |
Horse Power | 4.8 hp |
Motor | Honda GX160 - Gas |
Plate Size | 21 in. x 22 in. |
Amplitude | .087 in. |
Centrifugal Force | 3550 lbs. (15.8 kN) |
Exciter Speed | 4400 vpm |
Compaction Depth | Up to 18 in. |
Travel Speed | Up to 110 ft./min. |
Compaction Area | 11000 sq. ft./ hr. |
Operating Weight | 226 lbs. |
